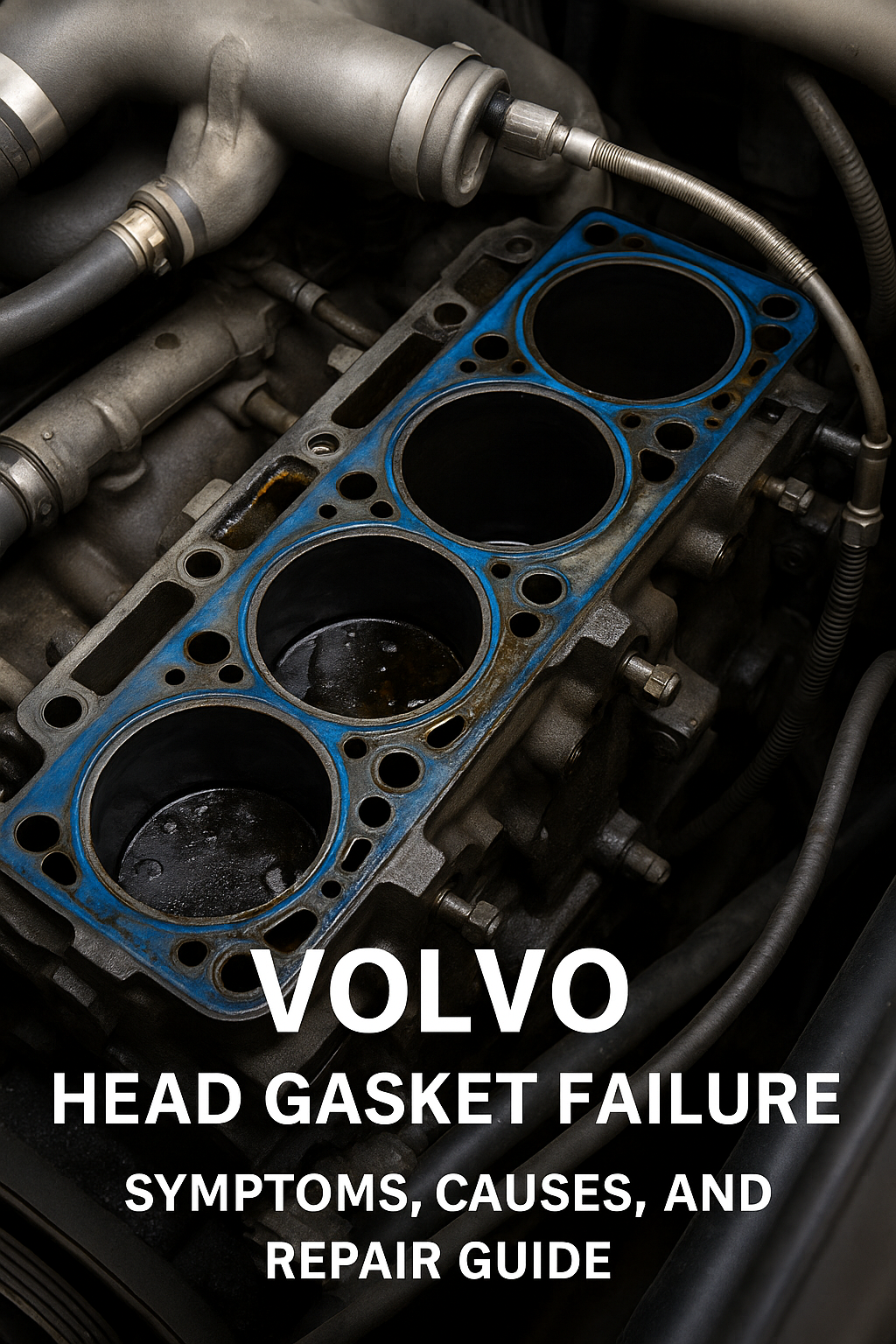

Volvo D13 engine head gasket close-up showing gasket surface and coolant leakage – article on symptoms, causes, and repair solutions

Volvo Head Gasket Failure – Symptoms, Causes, and Repair Guide

Volvo Engine Maintenance

Introduction – Why Head Gasket Health is Critical in Volvo Trucks

The head gasket is one of the most vital sealing components in a Volvo heavy-duty engine. Found between the cylinder head and engine block, it ensures proper compression, keeps coolant and oil separate, and maintains engine efficiency. In Volvo engines like the D12, D13, and D16, a failed head gasket can lead to catastrophic damage if ignored.

Volvo head gasket failure is not only costly but also a major source of downtime for fleets and owner-operators. Recognizing the symptoms early, understanding the causes, and following proper repair strategies can save thousands of dollars in repairs and prevent engine replacement.

This guide provides a complete breakdown of head gasket issues in Volvo trucks, from symptoms and causes to diagnostics, repair solutions, and prevention strategies.

Common Causes of Volvo Head Gasket Failure

Head gaskets in Volvo trucks endure extreme pressure and temperature conditions. Over time, various factors contribute to failure:

  1. Engine Overheating

    • One of the most common causes of Volvo head gasket failure.

    • Overheating warps the cylinder head, causing the gasket seal to fail.

    • Linked to coolant leaks, clogged radiators, or faulty thermostats.

  2. Coolant Contamination

    • Poor-quality or incorrect coolant leads to corrosion and gasket wear.

  3. Improper Torque or Installation

    • Incorrect torque during rebuilds can lead to sealing failure.

  4. High Mileage & Wear

    • Volvo engines with 700,000+ miles are more prone to head gasket failure.

  5. Detonation & Pre-Ignition

    • Poor fuel quality or injector issues can cause pressure spikes, damaging the gasket.

  6. Oil & Coolant Mixing

    • Worn gaskets allow fluids to cross-contaminate, weakening the seal further.

Symptoms of Volvo Head Gasket Failure

Spotting symptoms early prevents bigger problems. Look out for:

  • White Exhaust Smoke – Coolant leaking into combustion chamber.

  • Loss of Coolant Without Visible Leak – Internal leaks into cylinders.

  • Milky Oil (Coolant in Oil) – Head gasket breach between oil and coolant passages.

  • Overheating – Continuous high engine temperature.

  • Loss of Power – Low compression due to sealing failure.

  • Bubbling in Coolant Reservoir – Combustion gases escaping into cooling system.

  • Check Engine Light – ECM detects cylinder misfires or coolant temp anomalies.

Troubleshooting Volvo Head Gasket Failure

Symptom Likely Cause Recommended Fix
White smoke from exhaust Coolant leak into combustion Replace head gasket
Coolant loss without external leak Internal gasket breach Pressure test cooling system
Milky oil on dipstick Coolant mixing with oil Replace gasket + flush engine
Bubbling in coolant tank Combustion gases in cooling system Cylinder pressure test
Overheating + misfire codes Blown gasket between cylinders Remove head + replace gasket



Diagnosing Volvo Head Gasket Issues – Step-by-Step

  1. Visual Check – Look for external coolant or oil leaks around head.

  2. Cooling System Pressure Test – Identify internal leaks.

  3. Cylinder Compression Test – Detects low compression from sealing failure.

  4. Chemical Block Test – Checks for combustion gases in coolant.

  5. Oil Analysis – Identifies coolant contamination.

  6. ECM Code Reading – Look for misfire or coolant temperature fault codes.

Repairing Volvo Head Gasket Failure

A blown head gasket is not a small repair—it requires significant labor and precision.

Steps for Head Gasket Replacement

  1. Remove the cylinder head carefully.

  2. Inspect head and block for cracks or warping.

  3. Machine head surface if necessary.

  4. Install new OEM head gasket with proper torque sequence.

  5. Replace head bolts (torque-to-yield bolts must always be replaced).

  6. Reassemble engine and flush cooling/oil systems.

Cost of Volvo Head Gasket Replacement

  • Parts: $600 – $1,200 (OEM gasket set + bolts)

  • Labor: $4,000 – $7,000 depending on shop rates

  • Total: $5,000 – $8,000

Though expensive, proper head gasket replacement restores full engine reliability and prevents catastrophic failure.

Preventing Volvo Head Gasket Failure

  • Maintain cooling system (radiator, water pump, thermostat, coolant flushes).

  • Avoid overheating at all costs.

  • Replace injectors and turbos promptly when failing.

  • Always use OEM-quality head gaskets and bolts.

  • Follow Volvo torque specs during rebuilds.

Real-World Case Study – Volvo D13 Head Gasket Failure

A 2017 Volvo VNL with 850,000 miles showed white smoke, coolant loss, and bubbling in the reservoir. Diagnostics confirmed combustion gases in coolant.

  • Cause: Head gasket failure between cylinder 4 and coolant passage.

  • Fix: Full head gasket replacement + cylinder head resurfacing.

  • Result: Truck returned to service with improved fuel efficiency and no further coolant loss.

FAQs



Internal Links

Volvo Turbo Actuator Problems – Symptoms, Diagnosis, and Repair Solutions

Volvo EGR Cooler Problems – Causes, Symptoms, and Fixes

Volvo Injector Problems – Symptoms, Causes, and Repair Solutions

Volvo Engine Overheating Issues – Causes, Diagnosis, and Fixes

Volvo Truck Turbocharger Failure – Symptoms, Causes, Repairs, and Prevention

Conclusion – Protecting Your Volvo Engine from Head Gasket Failure

Head gasket issues are among the most serious problems Volvo truck owners face. While expensive to repair, catching Volvo head gasket failure early can prevent total engine loss. With proactive cooling system maintenance, proper fuel care, and timely diagnostics, head gaskets can last hundreds of thousands of miles.

For fleets and independent operators alike, the key is prevention and swift action at the first signs of trouble.
